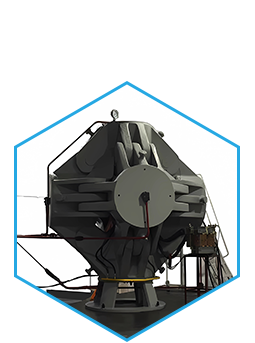

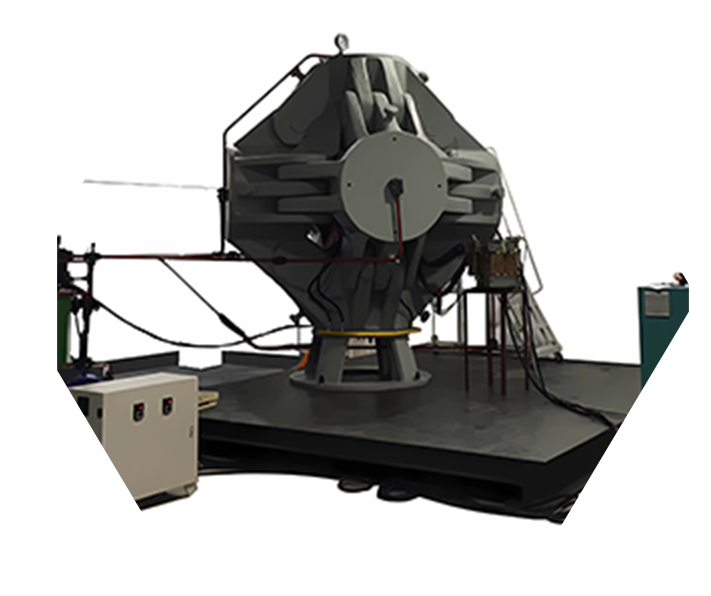

HPHT Cubic Press

+

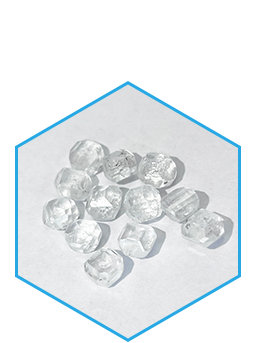

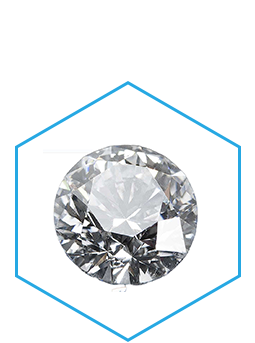

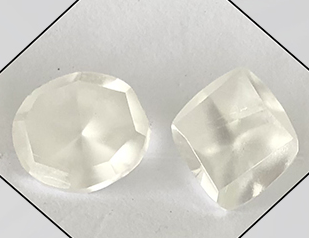

Lab Grown Diamond

+

why chooseus ?

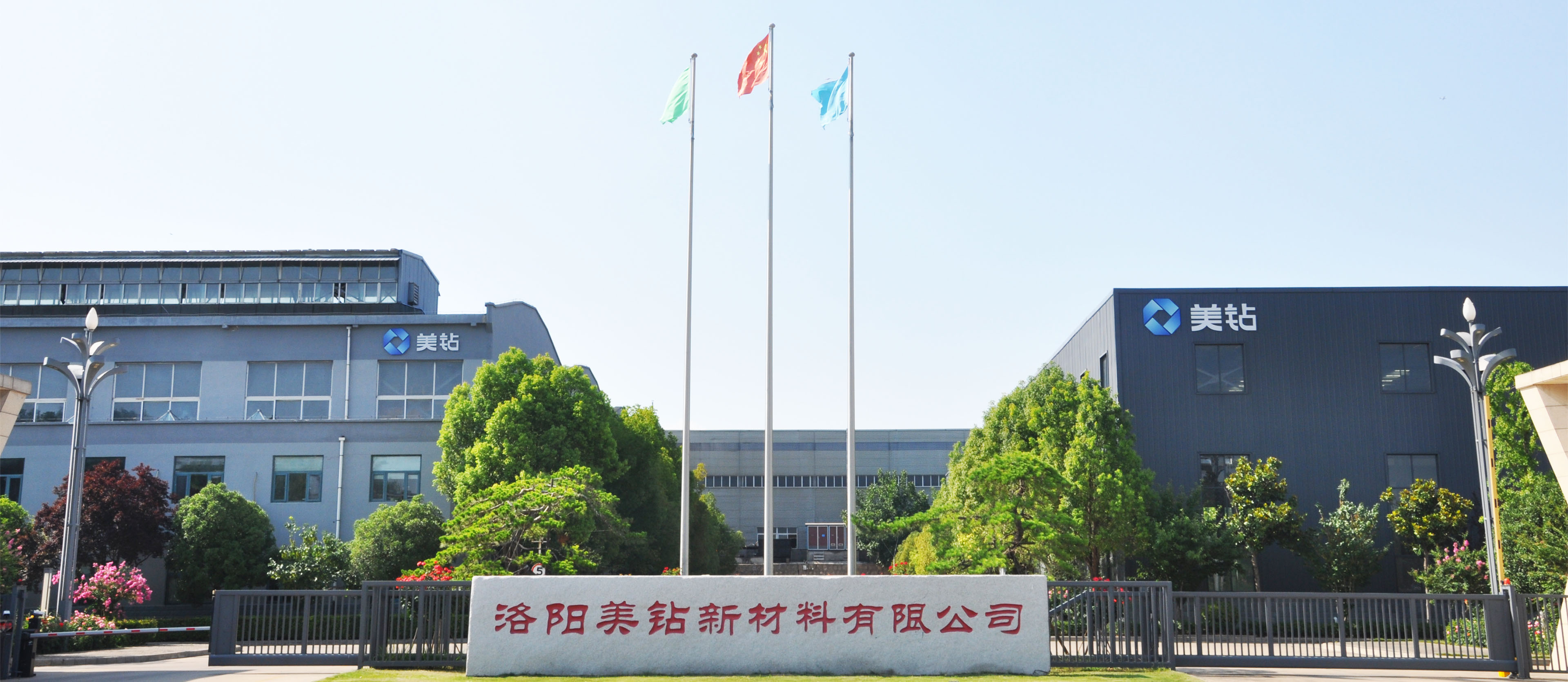

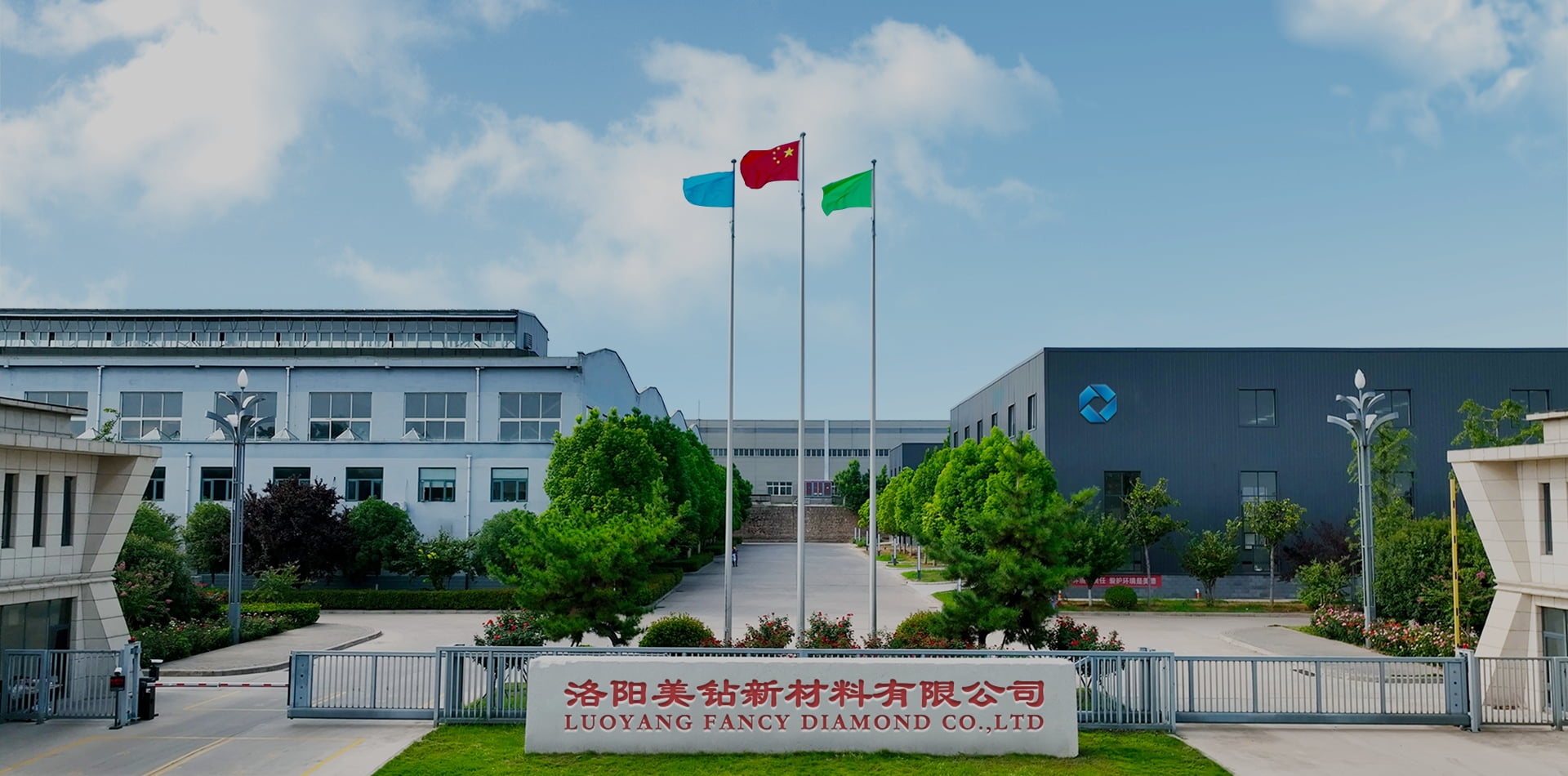

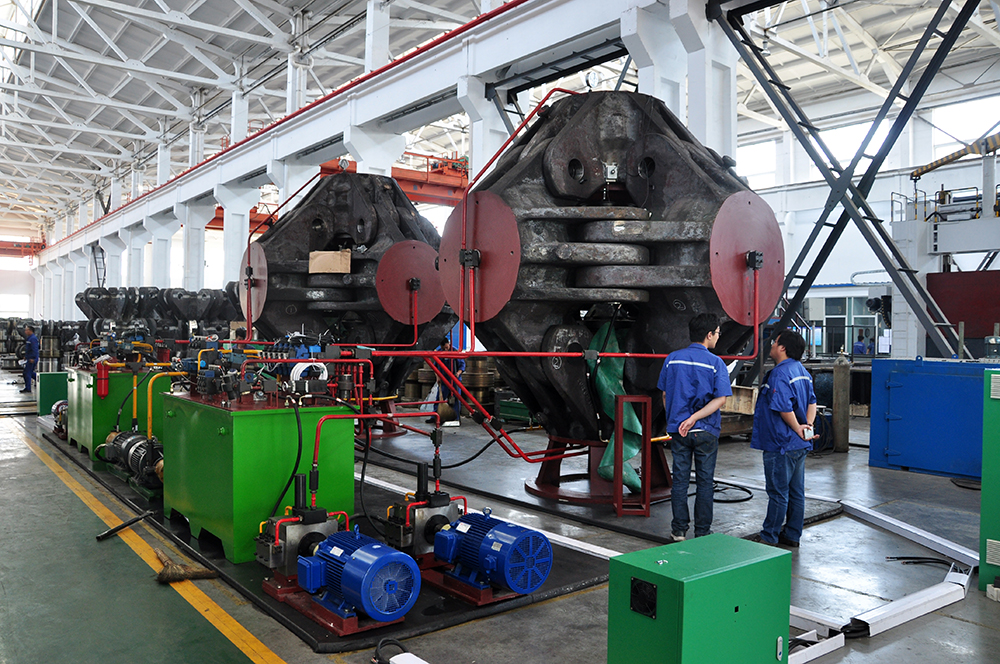

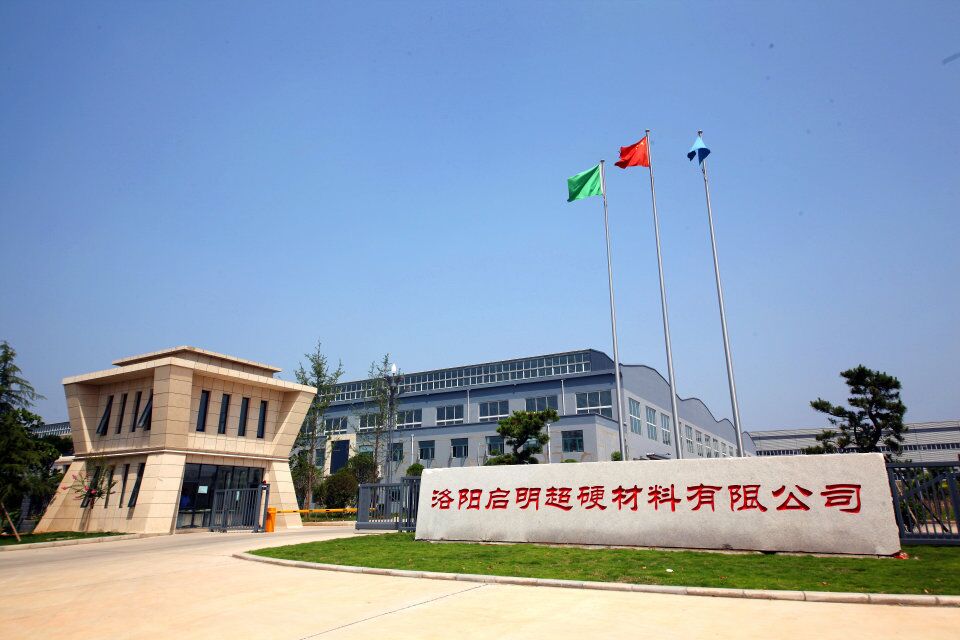

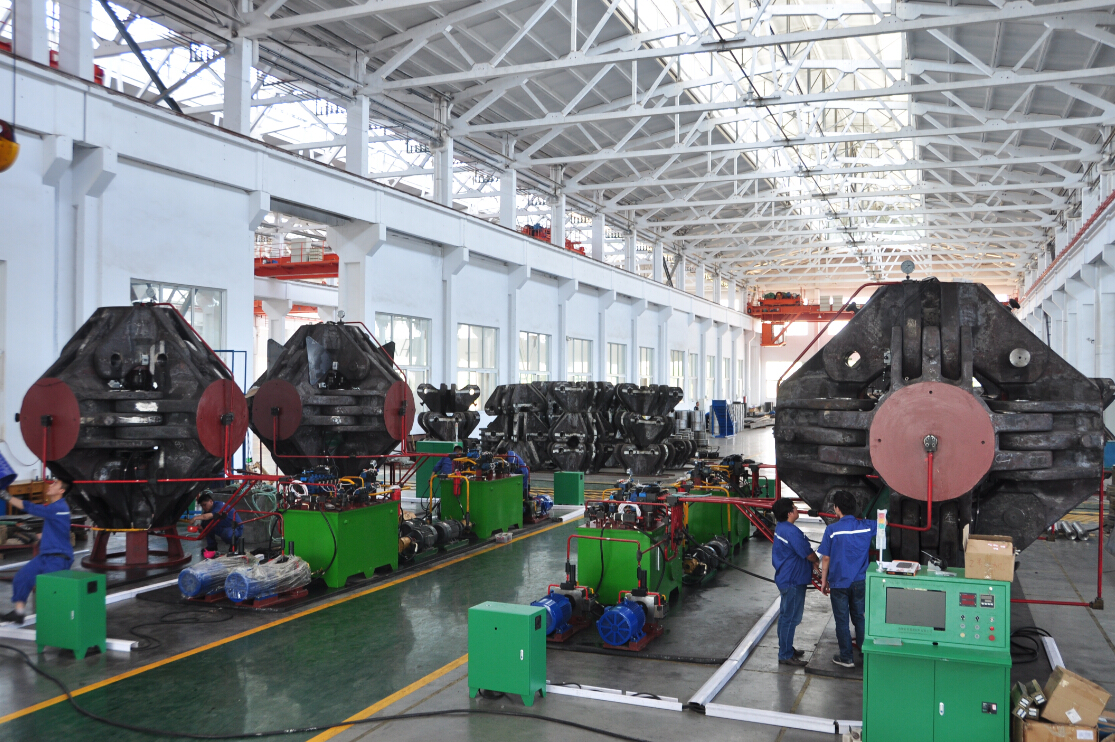

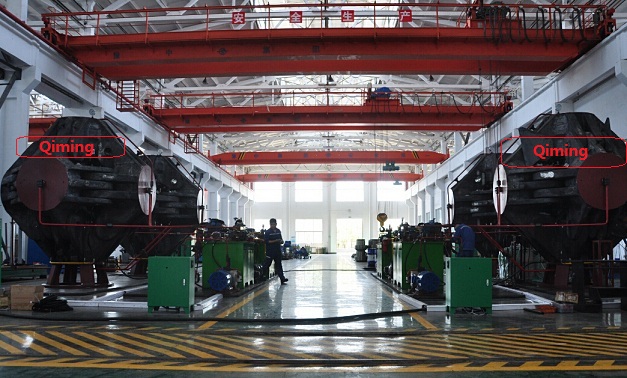

Luoyang Fancy Diamond is a modern enterprise engaged in the R&D, production and sales of superhard material production equipment and related products.   The production base is located in the Economic andTechnological Development Zone of Xin 'an County, Luoyang City, Henan Province,covering an area about 100,00㎡, a full set of machining, heat treatment,assembly&debugging production lines and large-scale intelligent synthesis workshop, with an annual output of 500 sets large-scale intelligent HPHT Cubic Press and 300,000 carats oflab grown diamonds production capacity.The company has a deep technical heritage and professional technical team, withindependent research and development capabilities, 39 patents were successfully declared and authorized between 2020 and 2022.The company adhering to the"quality essential "business philosophy, strictly implement the comprehensive technical quality management system, has been passed lS09001-2015 QualitySystem Certification, CE Safety Certification, Social Audit Certification.SUPPLIERASSESSMENT REPORT Certification, to provide customers with safe andreliable quality products. We will focus on research and development with ingenuity, create products with professionalism, and win-win cooperation with service!

39+patents

More than 39 patents

100000㎡

Over 100,000㎡ production base

500+sets

Annual production capacity of 500 sets of HPHT Cubic Press

300000+Carats

Annual production of 300,000 carats of diamonds

read more+

“Turn-Key”Project

Turn-key project is a brand-new concept proposed by Fancy Diamond to serve customers in an all-round way, providing customers with technical support in the whole process from project approval to full-scale production.The purpose of the Turn-key project is to provide technical support for our partners who have in-depth cooperation intentions or have sufficient financial strength.Technical support includes but is not limited to:a.Equipmentmatching/ equipment installation/ equipment maintenance/ eq

Equipment Configuration Recommendations

Technical Support

Installation and commissioning

Equipment layout design and ancillary project design

Recommended Equipment Models

Make equipment configuration recommendations according to the application direction of customer equipment

When using the same model of Fancy diamond HPHT cubic press to produce different superhard materials,the main difference lies in the difference between the hydraulic system and the electric control system.2.2.1 Different types of hydraulic system configurationa. Booster overpressure.This type is a traditional overpressure method, which has the advantages of low noise, low failure rate and super stability, but the disadvantage is that the system occupies a large area and the one-time investment cost is high .b. Super-high pressure pump overpressure.The advantage is that the type is simple in structure and suitable for various process forms. It is the most widely used and stable hydraulic configuration on the market.c.Reciprocating booster overpressureThe advantages of this type are low noise, small size, easy installation, and suitable for various process forms. The disadvantage is that the service life is unstable and has not passed the batch verification in the market.2.2.2 Electronic control systemThe electric control system consists of an industrial computer, a system classification controller, and the peripheral solenoid valve drive board, electrical components, sensors for grading current and voltage, and heating transformers to form an electrical control system of the press.The system is composed of: a.Host machine: Industrial computer, press controller, 19 inch LCD display, DI/DO Isolation Drive Board; cylinder head switching board, power control board, signal integration switching board, insulation testing board;b.Sensor: Primary current sensor (range: 0~100 or 120A), Secondary Current Transformer (range: 2000A~6000A), Secondary Voltage Sensor (range: 0~10V), Pressure Transmitter (range: 0~100 or 150MPa);c.Button Hand operatored buttons: Single Cylinder Forward Buttons (Six buttons), Forward Button, COMP(or Synthesis, they are same function ) Button, Return Button and Stop Button; Interface Buttons: Auto/Manual Button (A/M), Manual Pressure Relief Button, Quick Return Stoke Button, Emergency;d.Output controller: 24-Channel Output(relay), 2-Channel D/A Output:: 0~5V or 0~10V.In addition, customers can put forward additional requirements for configuration according to specific product production needs(voltage can be customized). The specific parameters of the system are as follows:

+

Technical support for equipment use

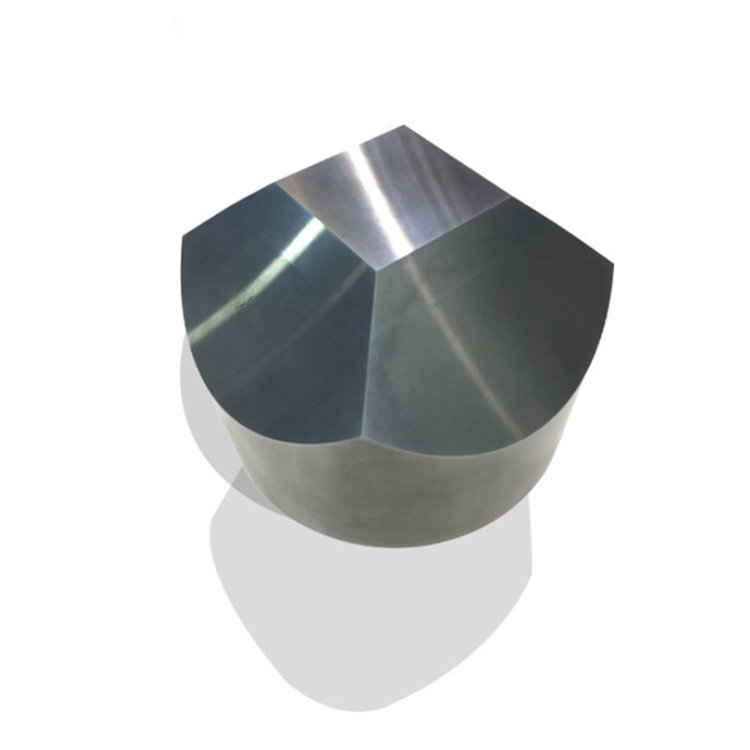

In the process of cooperation with customers, Fancy Diamond is mainly responsible for the following technical support,a.If the equipment fails, it is responsible for formulating a solution, and if necessary, Fancy Diamond should send professionals to the scene to deal with it.b.Responsible for the production or purchaseof all equipment-related accessoriessuch as anvils, steel rings, big and small blocks, sealsetc.c.If the customer needs, we can provide synthetic cubes or carry out related technical cooperation.If the customer needs, we can provideother auxiliary equipment, such as oven, hydraulic press, post-processing equipment, UPS, etc.

+

Equipment installation and debugging

Fancy Diamond has an experienced equipment assembly and commissioning team, which can meet all the needs of customers for on-site installation and commissioning. The specific work content are:a. Install the equipmentb. Debug the equipmentc. Guide product synthesisd. Customer operation staff traininge. After-sales service

+

Help customers with equipment layout design and site and supporting project design

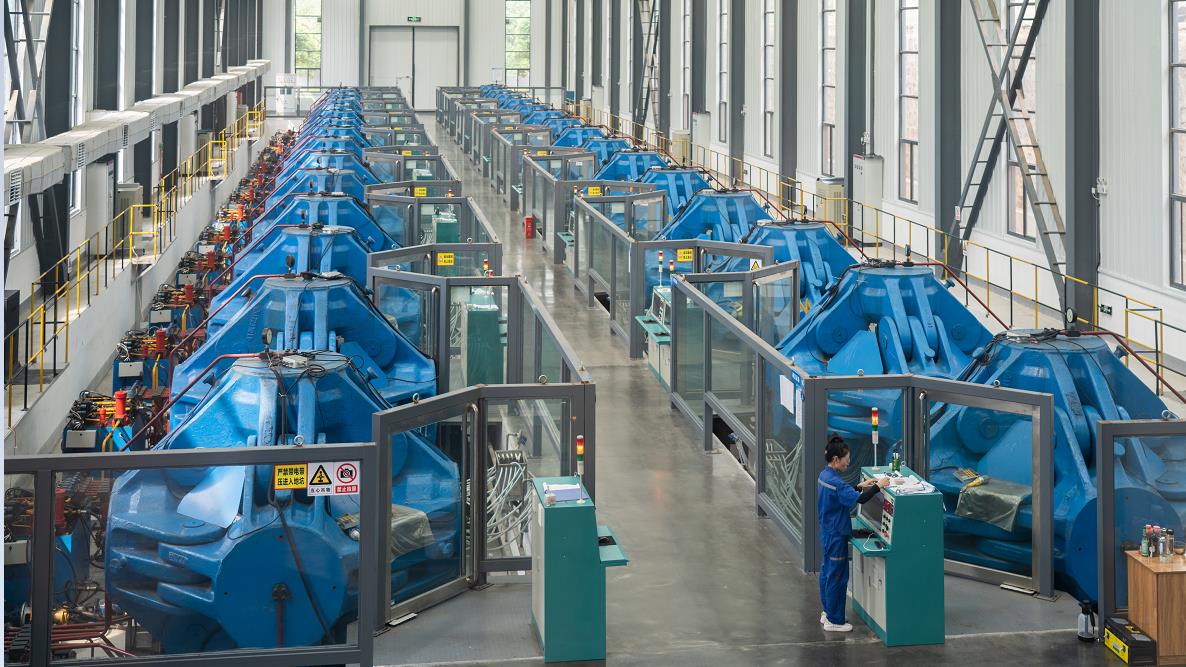

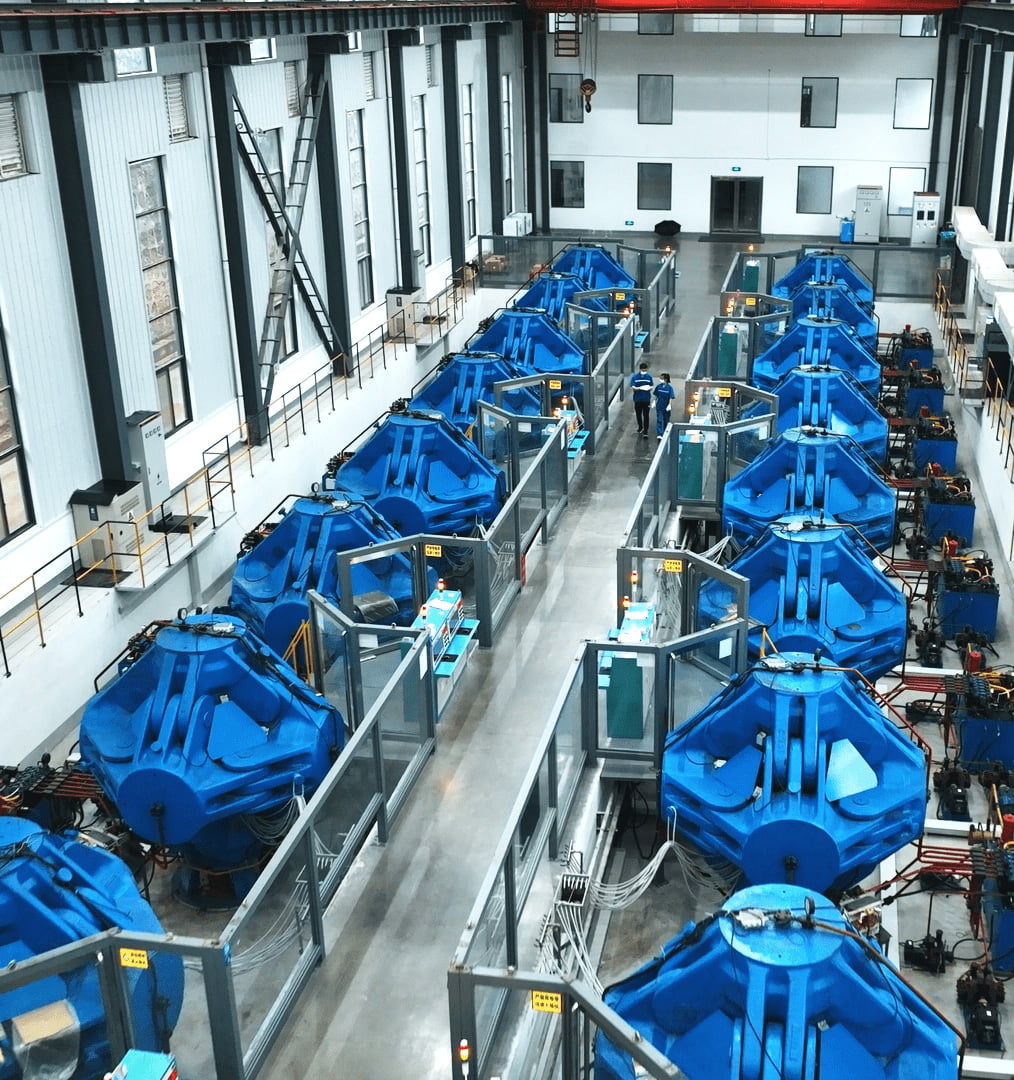

According to the model of the HPHT cubic press selected by the customer, it is an important part of our Turn-key project to carry out layout design and supporting project design for the customer. The following is based on the project of 50 sets QMYG850 cubic presses.According to the actual demand, if the customer conducts industrial diamond production, customer needs to have a synthetic site and a post-processing site. The synthesissite is a standard factory building with a height of21m×140m and a lifting height of more than 8m. The factory building has two lifting equipment with specifications above 16 tons. A set of cooling circulating water system, and the workshop foundation should also be constructed according to the standard, a pickling site of about 45 ㎡ should be built, with a lifting device of more than 5 tons.If customers have requirements for environmental protection, an air and water treatment system should be added. The electricity requirement is to have a transformer with a power of more than 1600KVA.Figure 1 Layout of QMYG850(50 sets) HPHT cubic pressesFigure 2QMYG850 base diagramFigure 3Layout of post-processing and exhaust gas treatment equipmentThe flow chart of industrial diamond synthesisand post-processingis as follows

+

Recommendation of equipment model according to the application direction of customer requirement

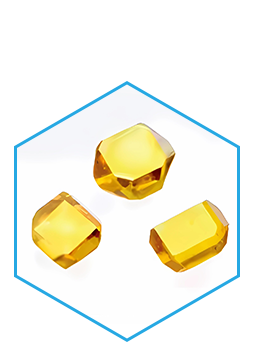

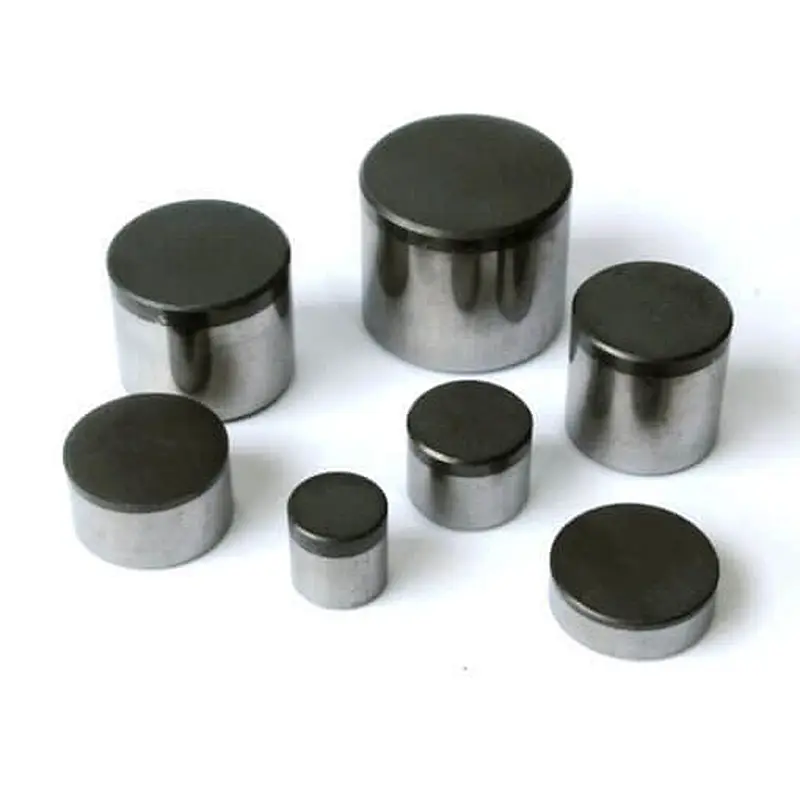

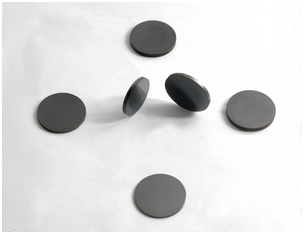

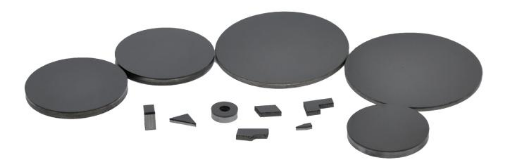

At present, the press models produced by the Fancy Diamond are mainly QMWG650—QMWG1000 and QMYG650—QMYG1000，various models can meet the production and research of superhard materials such as industrial diamond,single crystaldiamond, cubic boron nitride(CBN) and composite sheet(PDC, PCD, PCBN). Please refer to the parameters of various models of cubic presses have been listed one by one in the companys Product Operation Manual. At present, the QMYG850 press produced by our company is the main model in the market for producing superhard materials such as industrial diamond and single crystaldiamond. It has been extensively verified in various fields in the market. It has safe, stable, easy to operate and maintain , higher cost performance and other advantages.

+

Application

Our HPHT Cubic Press and its products are mainly used in Jewelry、Industry、semiconductor、Optics 、electronic、medicine and other fields.
read more+

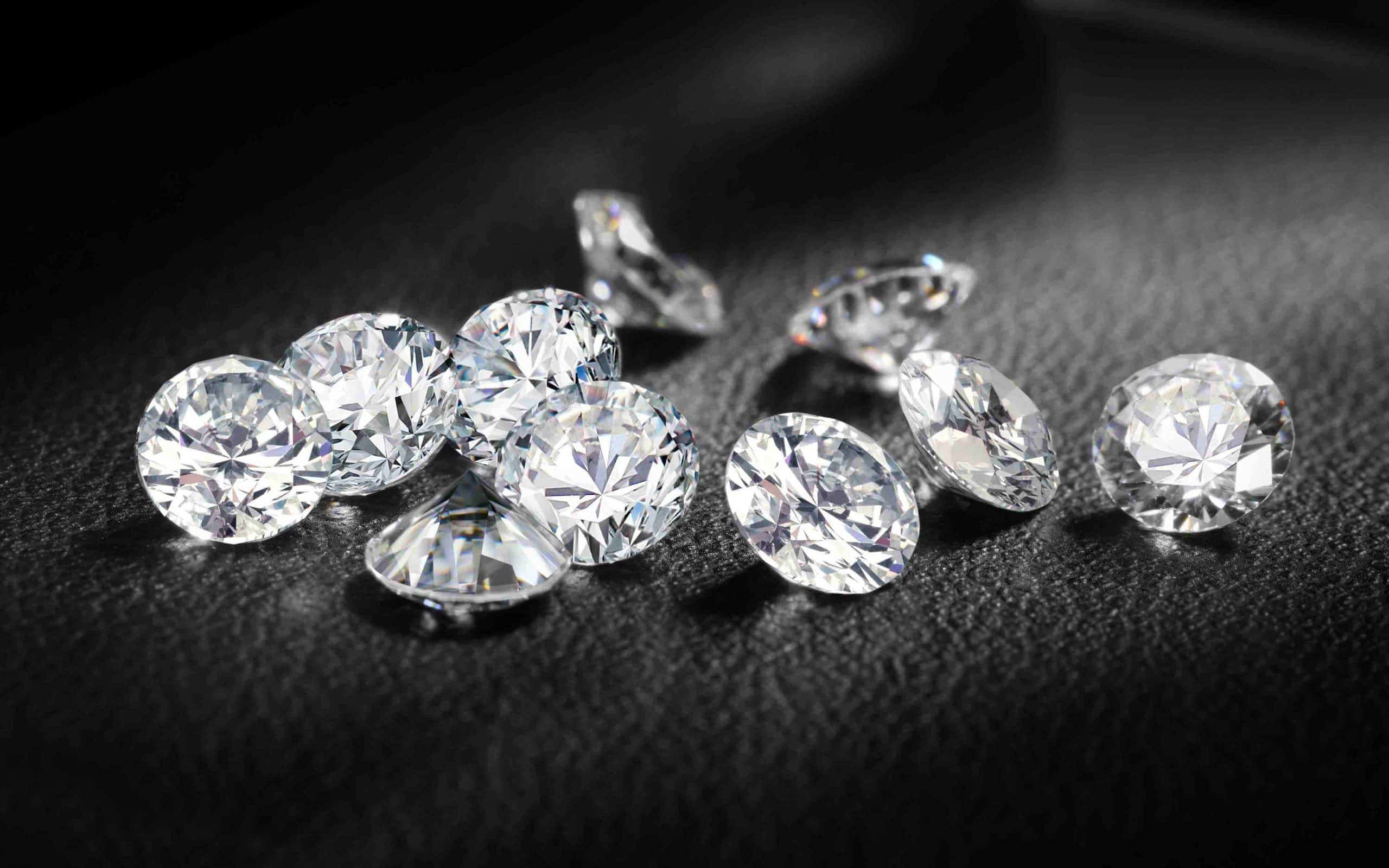

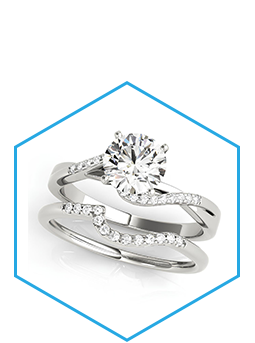

Jewelry

Industry

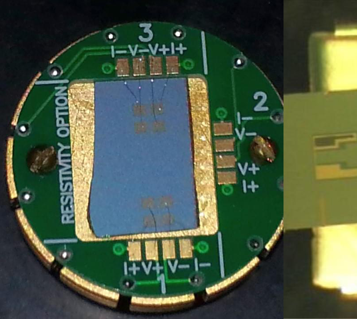

Semiconductor

Optics

Electronic

Medicine
